IP Addresses

The complete inventory of IP addresses ShadowMap attributes to your organization — discovered through domain resolution, subdomain enumeration, certificate transparency, and infrastructure mapping. Each IP is a pivot point that ties together the open ports, web applications, subdomains, SSL certificates, and alerts that live on it.

Overview

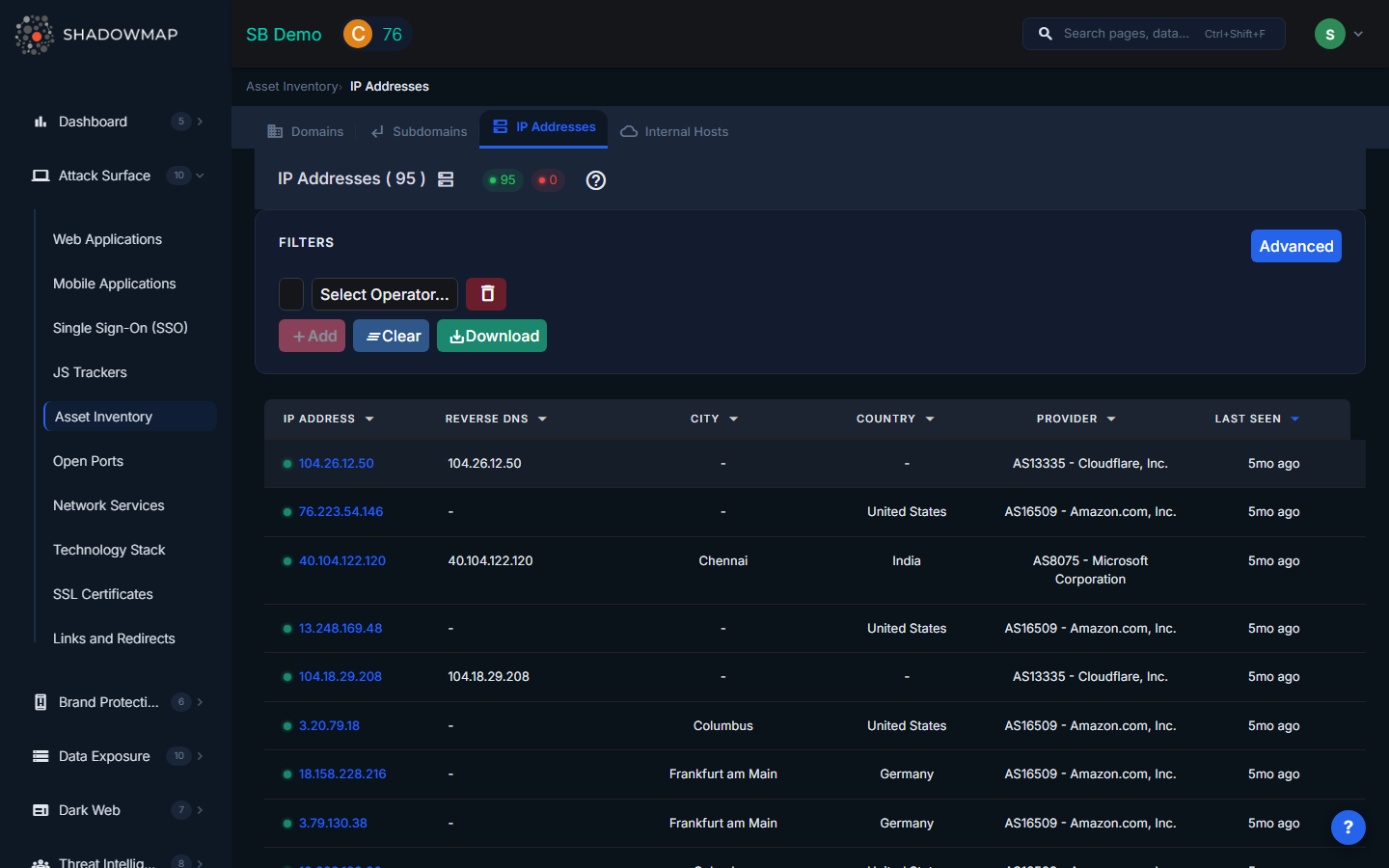

The IP Addresses view is a single sortable, filterable table of every IP attributed to you. The header shows the total count plus two live badges — a green Online count and a red Offline count — so you can immediately see how much of your attributed address space is currently responding.

Above the table you get three optional layers:

• A metrics strip (six KPI cards) — collapsed/expanded state is remembered per browser.
• An analytics panel of charts (collapsed by default) — trend, geography, providers, ports.
• Status tabs (All / Online / Offline) for one-click scoping.

Each row drills into a quick detail drawer (slide-out, no page navigation) or a full detail page with Overview, Threat Exposure, Related Assets, and Alerts tabs.

Where IPs come from

This module is read-only inventory — you do not add IPs by hand. ShadowMap populates it from its own discovery pipeline (domains, subdomains, certificates, and reverse-resolution). To influence what gets attributed to you, manage your seed domains and scan scope in Domains and the scan configuration, not here.

How it works

Most of what makes this page useful is computed server-side and is not visible from the column headers alone.

Online vs. Offline

Status is a stored integer flag on each IP record — 1 is surfaced as Online, 0 as Offline. "Online" means the address was responding (had at least one reachable service) on the most recent scan that touched it; "Offline" means it was previously attributed to you but did not respond on the last pass. Offline IPs are kept in inventory rather than deleted — a host that goes dark and comes back is a meaningful signal, and decommissioned-but-still-attributed space is itself worth reviewing. The Online/Offline header badges and the status tabs both read from this field.

The Ports count

The Ports column is a per-IP count of distinct open ports, batch-resolved from the summarized_open_ports data (joined on IP + company) in a single query for the whole page — not an N+1 lookup. A blank dash means no open ports were observed. The full port list (port, service, product, version, banner) appears in the detail drawer and on the Overview tab of the detail page. To work ports across your whole estate instead of one IP at a time, use Open Ports.

CMDB status (Known / Unknown)

The CMDB badge tells you whether an IP is reconciled against your configuration management database:

• Known — at least one application hosted on this IP has a matched record in CMDB reconciliation.
• Unknown — no matched application is associated with the IP (the default, and the common case when CMDB reconciliation is not configured).

"Unknown" is styled neutrally, not as a warning, precisely because it is the default state when no CMDB feed is present. Where CMDB is configured, an Unknown IP carrying live services is exactly what shadow-IT hunting looks for. The reconciliation itself is driven by CMDB Reconciliation.

Relevance score

The Relevance column is a normalized 0–100 priority score computed per row by a shared scoring trait. The trait takes a weighted average of whatever signals are present on the row, then re-normalizes by the weights actually used, so factors a module can't supply don't drag the score down:

Factor	Weight	How it scores
Severity	30	Critical = 1.0, High = 0.8, Medium = 0.5, Low = 0.2, Info/None = 0.0
Recency	25	Linear decay over 365 days — seen today = 1.0, a year ago = 0.0
Asset criticality	20	Module-specific signal when present
Business impact	10	Module-specific signal when present
Priority subdomain	10	Full weight if the asset is a designated priority subdomain
Executive impact	5	Full weight if the asset carries executive exposure

How this applies to IPs today

The table above is the full algorithm shared across modules. For the IP inventory specifically, the only factor currently present on each row is Recency (an IP record carries no severity, criticality, business-impact, priority-subdomain, or executive signal). In practice that means an IP's Relevance score today is driven by how recently it was last seen — higher for freshly-observed IPs, decaying toward 0 over a year. The other factors are reserved for modules that supply them.

Use Relevance to triage: sort descending to surface recently-seen IPs first. It is a prioritization aid, not a vulnerability score — a low Relevance score does not mean an IP is safe.

Reverse DNS de-duplication

When a reverse DNS (PTR) lookup fails, the backend sometimes returns the IP itself as the reverse_dns value. The table detects this and renders a dash instead of printing the same address twice, so a - in the Reverse DNS column means "no usable PTR record," not "empty field."

Threat exposure correlation (detail page)

The Threat Exposure tab does live correlation rather than reading a stored value. For the selected IP it: (1) collects the technology stack detected on that IP's applications and ports, (2) lower-cases the product names and matches them against the central CVE database (cve_affected_vendors → cves, with CVSS pulled from cve_metrics), and (3) for the top CVEs, looks up associated threat actors through MISP event mappings. The summary cards (Technologies, Matching CVEs, Critical CVEs, Exploited/KEV, Threat Actors) are counts off that correlation. Because it is product-name-based, this is an exposure view — "you run software with known CVEs," not "this CVE is confirmed exploitable here." Confirmed, scanner-validated findings live in Alerts and Vulnerability Overview.

Understanding the data

Columns

The table is column-customizable (gear/customizer in the header). IP Address is locked on; the rest can be toggled and your selection is saved in the browser.

Column	Description
IP Address	The address, mono-spaced, with a colored status dot (green = Online, red = Offline). Click to open the detail drawer.
Reverse DNS	PTR record for the IP, or - if none usable (see above).
Country	Geolocated country for the IP.
Provider / ASN	Hosting provider / autonomous system the IP belongs to (e.g. cloud provider, ISP, datacenter).
Ports	Count of distinct open ports observed on the IP. Blank dash = none.
CMDB	Known / Unknown / - — CMDB reconciliation status (see How it works).
Relevance	0–100 priority score (see How it works).
Last Seen	Relative time since the IP was last observed responding.

Metrics strip

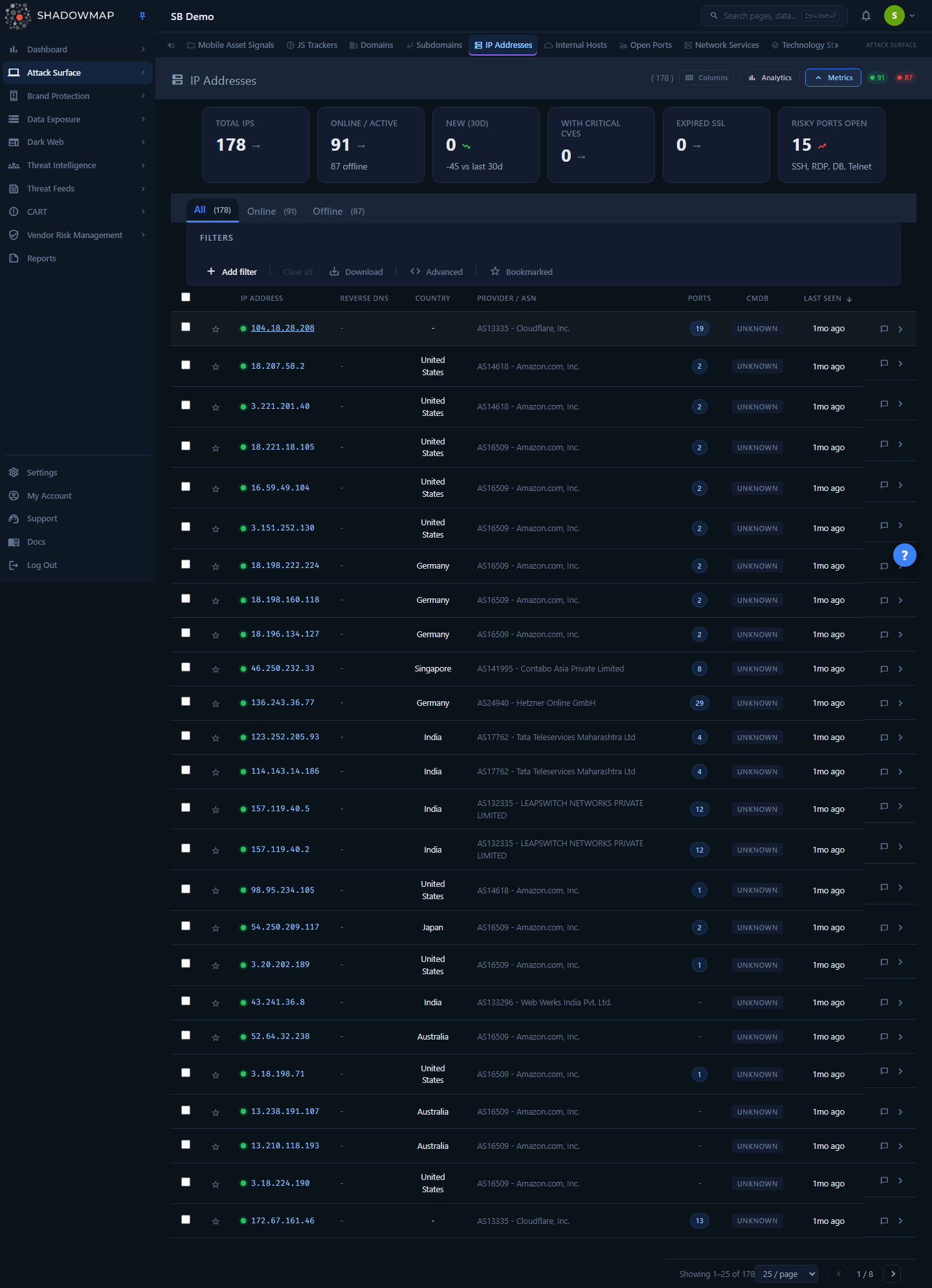

Six KPI cards summarize your IP posture at a glance:

Card	What it counts
Total IPs	All IPs attributed to you.
Online / Active	IPs currently responding; subtitle shows the offline count. Clickable — filters to Online.
New (30d)	IPs first discovered in the last 30 days, with a +/- comparison against the prior 30 days. An upward trend is flagged as the "bad" direction (growing attack surface).
With Critical CVEs	IPs whose tech stack matches a Critical-severity CVE.
Expired SSL	IPs serving an expired certificate.
Risky Ports Open	IPs exposing a high-risk service port (see below).

Risky ports

The "Risky Ports Open" metric counts IPs exposing any of these ports: 22 (SSH), 23 (Telnet), 3389 (RDP), 445 (SMB), 1433 (MSSQL), 3306 (MySQL), 5432 (PostgreSQL), 27017 (MongoDB), 6379 (Redis), 11211 (Memcached) — remote-access and database services that should rarely be internet-facing.

Analytics panel

Collapsed by default. Expand it for visual distribution analysis:

• IP Discovery Trend (30 Days) — new IPs discovered per day, for spotting sudden infrastructure growth.
• Geographic Distribution — IP count by country (top 10).
• Provider / ASN Breakdown — IP count by hosting provider (top 10), useful for finding infrastructure outside your sanctioned cloud accounts.
• Top Exposed Ports — most common open ports across your IPs, labeled with their service.
• Status Distribution — Online vs. Offline split.

Filtering & search

The filter bar supports field-based filters on:

Field	Notes
Status	Online / Offline (mirrors the status tabs).
IP Address	Match a specific address or pattern.
Country	Geolocated country.
Reverse DNS	PTR record value.
City	Geolocated city.
Provider	Hosting provider / ASN.

Additional controls:

• Status tabs (All / Online / Offline) — fastest way to scope by reachability; they apply a status filter under the hood.
• Bookmarked toggle (star) — show only IPs you've bookmarked.
• Sorting — click any sortable column header (IP Address, Reverse DNS, Country, Provider/ASN, Relevance, Last Seen). Default sort is Last Seen, descending.
• Pagination — 25 / 50 / 100 / 200 rows per page.
• Universal search — the IP module is wired into global search; see Universal Search.

Filters carry into pivots

Filters live in the URL query, so a filtered IP view can be bookmarked or shared as a link. The Related Assets chips in the detail drawer (below) pass the IP forward as a filter to other modules, so you stay in context as you pivot.

Detail drawer

Clicking an IP row (or pressing Enter on a focused row) opens a 560px slide-out drawer without leaving the list. It shows:

• IP, status badge, and reverse DNS.
• Infrastructure grid — Country, City, Provider/ASN, First Seen, Last Seen.
• Related Assets chips — counts for Ports, Apps, Subdomains, SSL Certs, and Alerts. The Ports, Apps, Subdomains, and Alerts chips are clickable and pivot to the corresponding module pre-filtered to this IP (Open Ports, Web Applications, Subdomains, and Alerts respectively).
• Open Ports — top 10 ports with service/product/version.

Use the left/right (previous/next) arrows in the drawer header to step through IPs without closing it, or Open full page to jump to the complete detail view.

Detail page

The full detail page (chevron on a row, or "Open full page" from the drawer) has four tabs:

Tab	Contents
Overview	Open ports (port, service, product, version, banner) and SSL certificates on the IP, each with a Valid / Expiring Soon / Expired status derived from the certificate's expiry date.
Threat Exposure	Detected technologies, matching CVEs (with CVSS, severity, KEV flag, and linked threat actors), and related threat actors — all from the live correlation described in How it works.
Related Assets	Applications tied to the IP (host, port, protocol, risk, status, last seen) each with a View link to the full application, and subdomains resolving to the IP (status, country, last seen).
Alerts	Security alerts associated with the IP, with a High/Medium/Low/Info summary.

The header card also shows the CMDB Known/Unknown badge and a Related Assets summary (Ports, Apps, Subdomains, SSL Certs, Alerts).

Taking action

Action	Where	What it does
Bookmark	Star icon on a row	Flag an IP for follow-up; filter the list to bookmarked-only with the Bookmarked toggle.
Comment	Comment icon on a row	Add notes to an IP; comment templates from your workspace settings are available.
Assign	Bulk action bar	Select rows, then Assign to a team member (or Clear assignee) for triage ownership.
Export	Header / bulk action bar	Export the current (filtered) IP list to Excel. The export respects active filters.
Share	Bulk action bar	Share selected IPs via the sharing/integrations workflow.
Pivot	Detail drawer chips	Jump to Open Ports, Web Applications, Subdomains, or Alerts pre-filtered to the IP.

Keyboard triage

The list supports keyboard-driven review: j / ↓ next row, k / ↑ previous row, Space toggle selection, Enter open the detail drawer, Esc close it, and ? to show the shortcut help overlay.

Common questions

An IP shows as Offline — should I remove it? Not automatically. Offline means it didn't respond on the last scan, but it stays in inventory because attributed-but-dark space is a legitimate review item (decommissioned hosts that still resolve, infrastructure that intermittently responds, or rotating cloud IPs). Investigate before assuming it's gone.

Why does an IP say "CMDB Unknown" when I know it's a real server? "Unknown" means no application on that IP is matched in CMDB reconciliation — most often because CMDB reconciliation isn't configured, or the application/host hasn't been reconciled yet. It is the default neutral state, not an error. See CMDB Reconciliation.

The Reverse DNS column shows a dash. Is the lookup broken? No — a - means there is no usable PTR record. To avoid printing the address twice, the table renders a dash whenever reverse DNS is empty or equal to the IP itself.

What's the difference between the Threat Exposure tab and Alerts? Threat Exposure is potential exposure derived from product-name CVE matching ("you run software X, which has these CVEs"). It is broad and not validated against the specific deployment. Alerts and Vulnerability Overview are scanner-confirmed findings. Treat Threat Exposure as a prioritization input, then confirm in Alerts.

Does Relevance mean the same thing as severity? No. Relevance (0–100) blends severity and recency, asset criticality, business impact, priority-subdomain, and executive-impact signals into one prioritization number. A high-severity but very stale finding can score lower than a fresh medium-severity one. Use it to order your queue, not to judge whether an IP is safe.

Can I add an IP manually? No. IPs are populated by ShadowMap's discovery pipeline. To change what's attributed to you, adjust your seed domains and scan scope (start from Domains).
