Open Ports
Open Ports is the inventory of every listening service ShadowMap found on your internet-facing IP addresses. It answers the question every attacker asks first: what is reachable, and what is running on it? Each row is an exposed IP with its full port/service breakdown — protocol, service, product, version, CPE, and banner — so you can spot the RDP box, the exposed database, or the forgotten admin panel before someone else does.

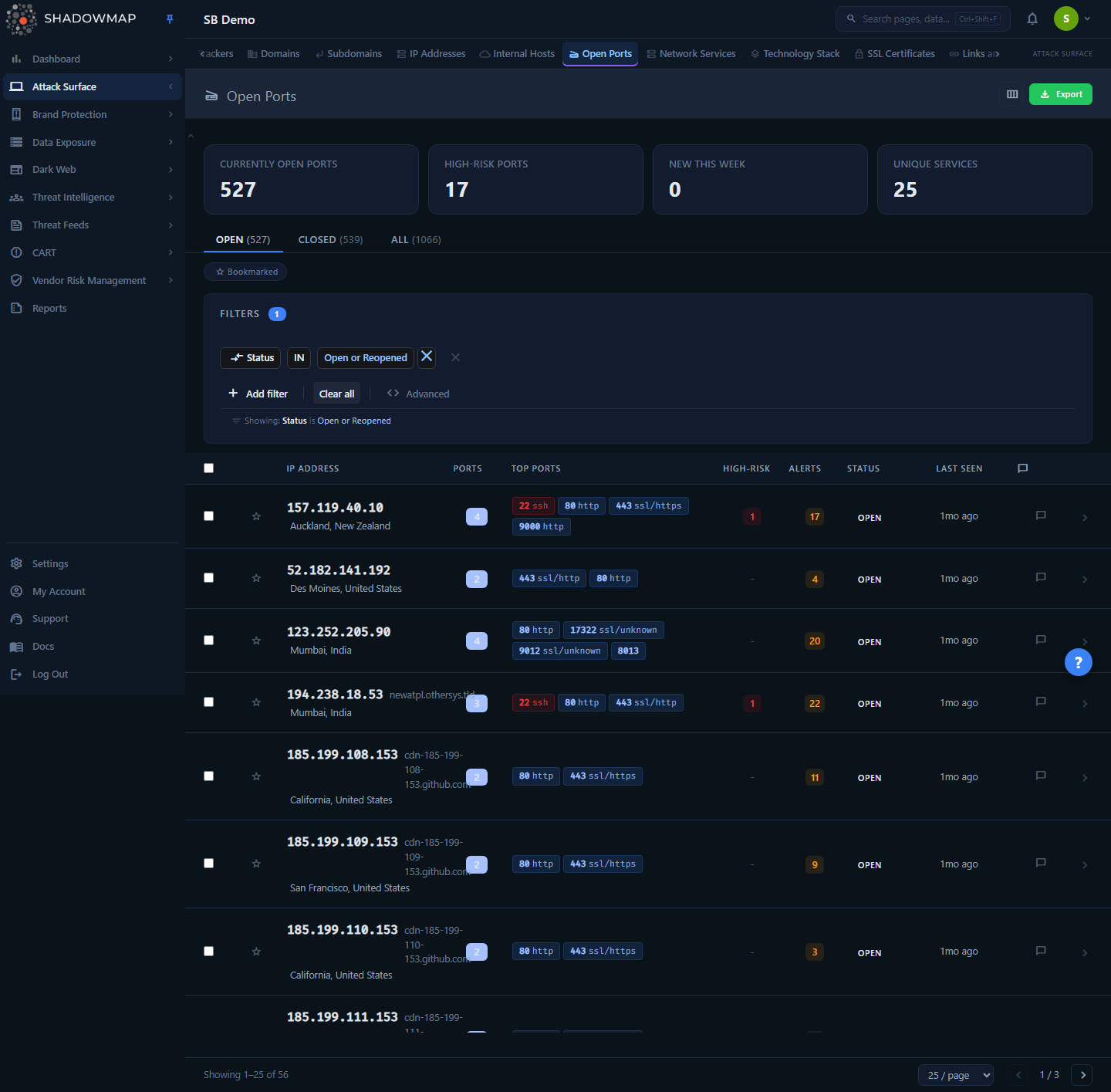

Overview
The page lists one row per IP address, not per port. Each row rolls up all the ports observed on that host: a port-count badge, the top ports as inline chips (high-risk ones in red, closed ones struck through), a high-risk count, linked alerts, status, and first/last-seen timestamps. The IP cell shows reverse DNS, geolocation (with country flag), and the hosting provider/ASN.
Above the table, four KPI cards (the metrics strip) summarize your overall port exposure, and three tabs — Open, Closed, All — switch the universe you are looking at. The default view is the Open tab: currently-open IPs awaiting triage.
Ports-first metrics, IP-grouped table
This is an intentional and important quirk. The table rows are IPs (one host per row), but the KPI cards and tab badges count port rows. A single IP with 12 open ports is one table row but contributes 12 to the "Currently Open Ports" tile and to the Open tab badge. The badge/tile numbers will therefore be larger than the visible row count — that is by design, not a bug. Tiles describe port exposure; the table is your host worklist.
How it works
These are the mechanics you cannot infer from the UI alone.
Where the data comes from
Port data is produced by ShadowMap's external scanner against the IP addresses in your confirmed asset inventory, then summarized into two tables that this page reads:
summarized_ips— one row per IP, carrying the IP-level triage status (Open / Reopened / Closed), reverse DNS, geolocation, and provider/ASN.summarized_open_ports— one row per (IP, port), carrying protocol, service, product, version, CPE, banner, a port status (Open / Closed), and acreated_atfirst-observed timestamp.
The list query groups summarized_open_ports rows under their parent IP, so each table row is a host with its nested port list.
Two different "statuses" — don't conflate them
There are two status concepts on this page, at two different levels:
| Concept | Lives on | Values | What it means |
|---|---|---|---|
| Triage status (IP level) | the IP row | New, Open, Reopened, Closed | Your workflow state for the host — the Status column and the Open/Closed/All tabs key off this. |
| Port status (port level) | each port chip / detail row | Open, Closed | Whether that specific port was observed listening on the last scan. Closed ports are shown struck-through. |
The Open tab is defined as triage status IN (Open, Reopened); the Closed tab is triage status = Closed; the All tab applies no triage filter. Closing a host (triage = Closed) is a triage decision and does not change what the scanner reports — a host you closed will keep its open ports until the scanner stops seeing them.
High-risk ports
A port is flagged "high-risk" when it appears on a fixed list of services that are dangerous to expose to the internet. The same list drives the red chips, the High-Risk column count, the per-port "High" risk badge in the detail view, and the High-Risk Ports KPI card:
| Category | Ports |
|---|---|
| Remote access / shell | 22 (SSH), 23 (Telnet), 3389 (RDP), 5900–5902 (VNC), 512/513/514 (rsh/rlogin/rexec) |
| File transfer / sync | 20/21 (FTP), 69 (TFTP), 873 (rsync) |
| File sharing / RPC | 111 (rpcbind), 2049 (NFS), 135 (MSRPC), 137/138/139 (NetBIOS), 445 (SMB) |
| Directory / naming | 161 (SNMP), 389 (LDAP) |
| Databases | 1433 (MSSQL), 1521 (Oracle), 3306 (MySQL), 5432 (Postgres), 6379 (Redis), 5000, 27017/27018 (MongoDB) |
High-risk is about exposure, not a CVE
A high-risk flag means "this service should rarely be reachable from the public internet," not "this host has a known vulnerability." A patched, fully-hardened SSH on 22 is still flagged because exposing it broadens your attack surface. For vulnerability findings tied to a service, look at the Alerts column / tab.
What the KPI cards count
All four cards count open port rows (status = Open) in summarized_open_ports, scoped to your company:
| Card | Definition |
|---|---|
| Currently Open Ports | Total open port rows. |
| High-Risk Ports | Open port rows whose port number is on the high-risk list above. |
| New This Week | Open port rows first observed (created_at) in the last 7 days — newly-appeared exposure. |
| Unique Services | DISTINCT count of non-empty service names across open ports. |
Because every count is derived from one query against the same port universe, Open + Closed = All holds exactly at the port-row level. (The metrics strip is collapsible; its collapsed state is remembered in your browser.)
Uniqueness and re-detection
A host is identified by its IP. When the scanner re-finds a host or a port it had previously stopped seeing, ShadowMap reopens it rather than creating a duplicate. Ports that disappear from a scan flip to port-status Closed but remain on the host's record (struck-through) so you keep the history of what was once exposed.
Understanding the data
List columns
Columns are customizable via the view-column button (top right); your selection is saved in your browser. IP Address is always shown.
| Column | Description |
|---|---|
| IP Address | The exposed host. Shows reverse DNS, country (flag + name), and provider/ASN beneath the IP. |
| Ports | Count of currently-open ports on this host (closed ports excluded). |
| Top Ports | Up to 4 port chips with service labels; high-risk in red, closed struck-through, plus a +N overflow chip. |
| High-Risk | Count of open high-risk ports on the host (red badge), or -. |
| Alerts | Count of open alerts linked to this IP. |
| Relevance | A computed relevance indicator for prioritization. |
| Status | IP triage status: Open, Reopened, or Closed. |
| Last Seen | When the host was most recently observed (relative time). |
| First Seen | When the host first appeared in your inventory. |
| Provider / ASN | Hosting provider / autonomous system. |
| Country | Geolocation of the IP. |
| Applications | Count of web applications mapped to this IP. |
| Comments | Comment count; click to jump to the host's Activity tab. |
IP triage statuses
| Status | Meaning |
|---|---|
| Open | Currently-exposed host in your active worklist. |
| Reopened | Was closed, then re-detected by a later scan. Treated as open. |
| Closed | You triaged this host as handled/accepted. Hidden from the Open tab. |
| New | Reserved in the data model for parity with other modules; new hosts are inserted as Open. |
Per-port fields (detail view)
| Field | Description |
|---|---|
| Port | Port number. |
| Protocol | TCP/UDP (defaults to TCP). |
| Service | Detected service (e.g., ssh, http, mysql). |
| Product | Detected software product. |
| Version | Detected version string. |
| CPE | Common Platform Enumeration identifier (hover for the full string). |
| Status | Open or Closed. |
| Risk | "High" if the port is on the high-risk list. |
| Banner | Raw service banner text, shown in the Service Banners section when captured. |
Filtering & search
The search/filter bar supports structured rules across these fields:
| Filter | Use it to |
|---|---|
| Port | Find a specific port (e.g., 3389, 445). |
| Protocol | Narrow to TCP or UDP. |
| Service | Filter by detected service name. |
| Port Status | Open vs Closed at the port level. |
| Status | IP triage status (Open / Reopened / Closed). |
| IP Address | Locate a specific host. |
| Reverse DNS | Match on hostname. |
| Netblock | Scope to a CIDR/netblock. |
| Country | Filter by IP geolocation. |
| ASN / Provider | Filter by hosting provider or autonomous system. |
| First Seen | Date filter on first observation. |
Any custom tag keys defined for this module also appear as filter fields. The active tab's status preset is always applied first, and your own rules layer on top — so filtering Port = 3306 inside the Open tab shows currently-open hosts running MySQL.
Bookmarked-only view
The Bookmarked chip filters the current page to hosts you have starred. Bookmarking is per-row (the star icon) and is a fast way to build an ad-hoc working set during triage.
Columns with a sort arrow — IP Address, Ports, Relevance, and Last Seen — are sortable. Page size is selectable (25 / 50 / 100).
Detail view
Clicking a row opens the IP detail page. The header shows the IP, its triage status, geolocation, provider, reverse DNS, and a stat strip (Ports, High-Risk, Alerts, Applications). Users with write permission get a status dropdown (Open / Reopened / Closed) to triage the host directly.
The detail page has four tabs:
| Tab | Shows |
|---|---|
| Ports | Full per-port table — port, protocol, service, product, version, CPE, status, risk — plus captured service banners. High-risk rows are marked with a red left border. |
| Alerts | Open alerts linked to this IP (risk score, title, host, port), each linking to the full alert. Paginated via "Load More." |
| Applications | Web applications running on this IP and the mapped hosts (subdomains) that resolve to it, each linking to Web Applications. |
| Activity | Comments and custom tags for the host. Add/remove tags and discuss findings with your team. |
Press Esc to return to the list. The list itself supports keyboard triage (j/k to move, Enter to open, Space to select, s to bookmark, ? for help).
Taking action
Select one or more hosts (row checkboxes, or select-all-on-page) to reveal the bulk action bar:
| Action | Effect |
|---|---|
| Acknowledge | Sets the selected IPs to triage status Open (the active/worklist state). |
| Close | Sets the selected IPs to Closed — removes them from the Open tab. |
| Assign to | Assigns the selected hosts to a team member (searchable). |
| Clear assignee | Removes the current assignee. |
| Share | Shares the selection through your configured integration (Jira, Slack, etc.). |
Single hosts can also be re-triaged from the detail header's status dropdown. The whole list can be exported asynchronously via the Export button in the page header; the export respects your current filters and runs in the background so large datasets don't block the UI.
Closing a host is a triage decision, not a fix
Marking an IP Closed only changes its workflow state in ShadowMap. If the underlying service is still listening, the scanner will keep reporting it and may flip the host to Reopened on the next scan. Close hosts you have genuinely remediated or formally accepted as risk — don't use it to silence noise.
Common questions
Why is the "Currently Open Ports" number bigger than the number of rows? The table lists one row per IP; the KPI cards and tab badges count individual port rows. A host with many open ports inflates the port count but is still a single row. This is intentional — see the callout in the Overview.
A port shows as Closed but the host is still in my Open tab. Why? Those are two different statuses. Port status (Open/Closed) reflects what the scanner last observed on that specific port. Triage status (the tab) reflects your workflow decision about the host. A host stays in the Open tab until you close the host, regardless of individual ports closing.
What makes a port "high-risk"? It is on a fixed list of services that are dangerous to expose publicly — remote access (SSH, RDP, VNC, Telnet), file sharing (SMB, NFS, FTP), databases (MySQL, Postgres, MSSQL, Redis, MongoDB, Oracle), and similar. It is about exposure surface, not a confirmed vulnerability.
How fresh is this data? Each host's First Seen / Last Seen reflects scanner observations. "New This Week" counts open ports first observed in the last 7 days. Re-detected hosts are reopened rather than duplicated.
How do I find all exposed databases (or RDP, or SMB)? Filter by Port (e.g., 3306, 3389, 445) or by Service, optionally combined with the Open tab. For a portfolio-wide view of dangerous exposure, watch the High-Risk Ports KPI card and filter Port Status = Open.
Where do vulnerabilities for a service show up? On the host's Alerts tab and in the Alerts column count. Open Ports tells you what is reachable; Alerts tells you what is wrong with it.
